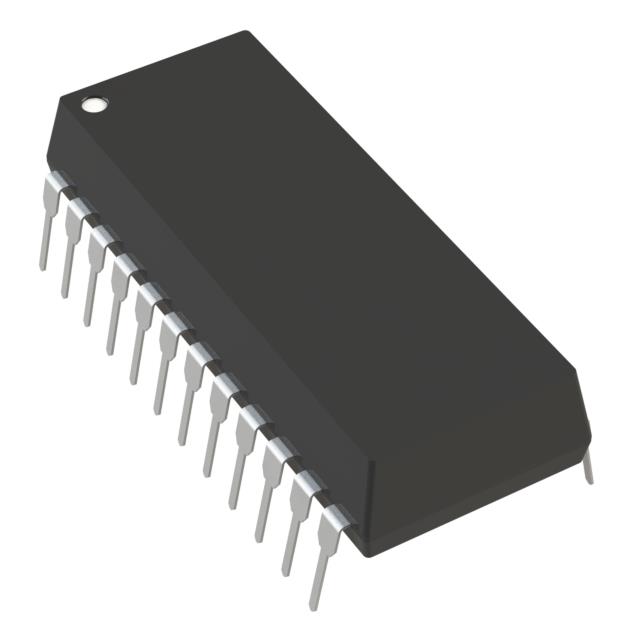

LM2825N-5.0/NOPB
IC REG BUCK 5V 1A 24DIPManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments LM2825N-5-0-NOPB is a 1A, 5V fixed output voltage buck switching regulator designed for power management in various applications. This component features a 150kHz switching frequency and operates within an input voltage range of 7V to 40V, with a maximum output current of 1A. The device utilizes a non-synchronous buck topology and is housed in a 24-DIP (0.600", 15.24mm) through-hole package. Its fixed 5V positive output configuration and robust design make it suitable for industrial, medical, and telecommunications sectors requiring reliable voltage conversion. The operating temperature range is -40°C to 85°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.600"", 15.24mm) |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 150kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | 24-PDIP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 7V |
| Voltage - Output (Min/Fixed) | 5V |
