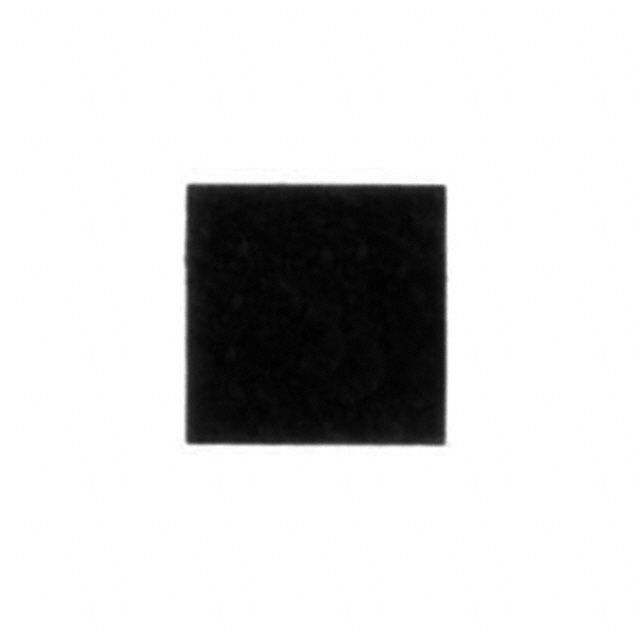

LM2787TPX/NOPB
IC REG CHRG PUMP ADJ 10MA 8DSBGAManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Texas Instruments LM2787TPX-NOPB is a negative adjustable charge pump switching regulator. This component offers a single output capable of delivering up to 10mA with an adjustable output voltage ranging from -1.5V to -5.2V. It operates from an input voltage range of 2.7V to 5.5V and features a switching frequency of 260kHz. The LM2787TPX-NOPB is designed for surface mount applications and is supplied in an 8-DSBGA package, presented in tape and reel. This device is suitable for applications requiring efficient voltage conversion in a compact form factor, often found in portable electronics and battery-powered devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFBGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 10mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Negative |
| Frequency - Switching | 260kHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Charge Pump |
| Supplier Device Package | 8-DSBGA |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | -5.2V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | -1.5V |
