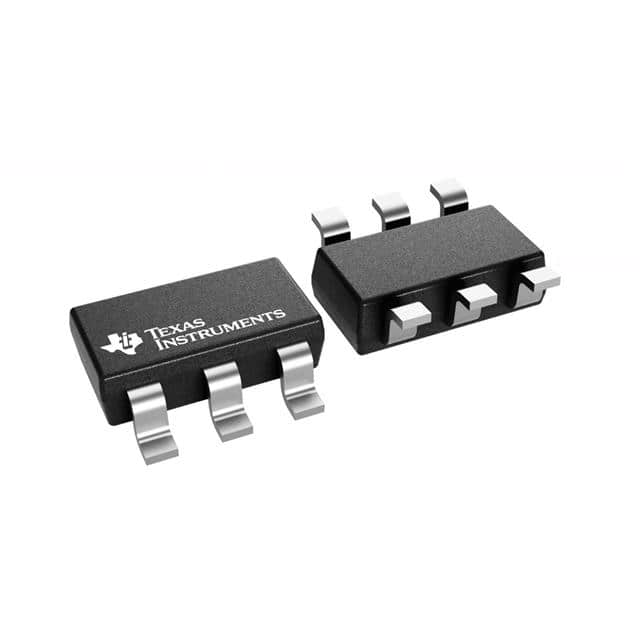

LM2736XMK
IC REG BUCK ADJ 750MA SOT23Manufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Texas Instruments LM2736XMK is an adjustable, positive output buck switching regulator designed for efficient step-down voltage conversion. This component operates with an input voltage range of 3V to 18V and can deliver an output current of up to 750mA. Featuring a high switching frequency of 1.6MHz, it enables the use of small external components, reducing overall solution size. Its adjustable output capability allows for precise voltage setting within the range of 1.25V to 16V. The LM2736XMK is housed in a SOT-23-6 Thin, TSOT-23-6 package, suitable for surface mount applications. This regulator is utilized in various industries, including consumer electronics, industrial automation, and portable devices. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 750mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1.6MHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck |
| Supplier Device Package | SOT-23-THIN |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 16V |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 1.25V |
