LM2678S-5.0
IC REG BUCK 5V 5A DDPAKManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More

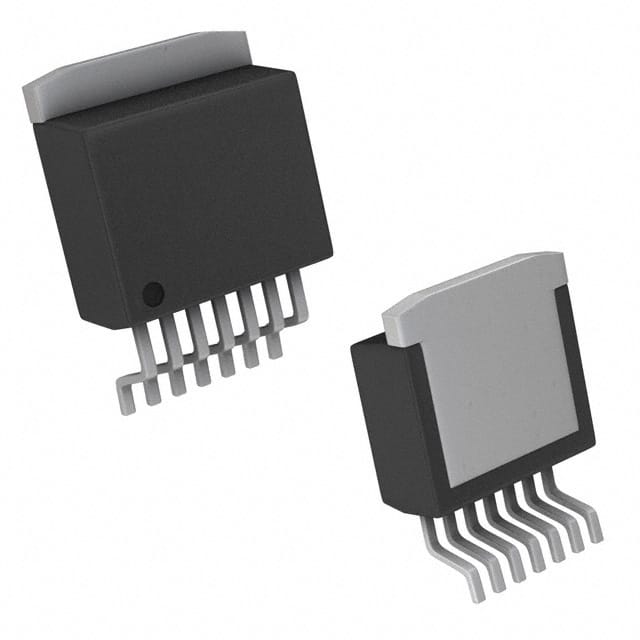

Texas Instruments LM2678S-5-0 is a 5A, 5V fixed output voltage, step-down switching regulator from the SIMPLE SWITCHER® series. This high-efficiency buck regulator operates with an input voltage range from 8V to 40V, featuring a 260kHz switching frequency. The device is housed in a TO-263-8, D2PAK package, facilitating surface mount assembly. Designed for robust performance, it includes internal components for simplified circuit design, eliminating the need for external Schottky diodes due to its non-synchronous rectification topology. Applications for the LM2678S-5-0 span industrial automation, consumer electronics, and telecommunications equipment requiring efficient DC-DC power conversion. The operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 260kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | TO-263 (DDPAK-7) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | 5V |
