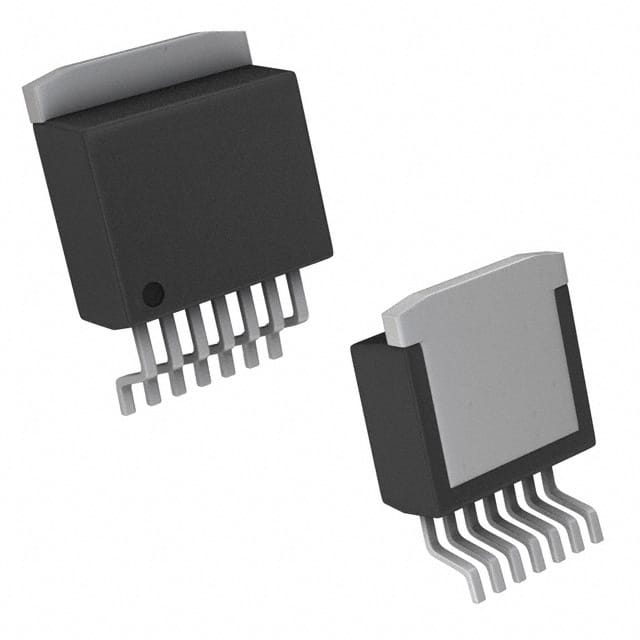

LM2677S-ADJ
IC REG BUCK ADJ 5A DDPAKManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments LM2677S-ADJ is a SIMPLE SWITCHER® buck switching regulator designed for efficient step-down voltage conversion. This device offers an adjustable output voltage, ranging from a minimum of 1.21V up to 37V, with a maximum output current capability of 5A. The internal switch architecture operates at a switching frequency of 260kHz, enabling the use of smaller external components. Featuring a non-synchronous buck topology, the LM2677S-ADJ requires minimal external components for operation and is suitable for applications requiring a positive output. It is housed in a TO-263-8, D2PAK (7 Leads + Tab) surface-mount package. The operational input voltage range is from 8V to 40V, and it is specified for operation across an ambient temperature range of -40°C to 125°C. This component is commonly utilized in power supply designs across various industrial and consumer electronics sectors.
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 260kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | TO-263 (DDPAK-7) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 37V |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | 1.21V |
