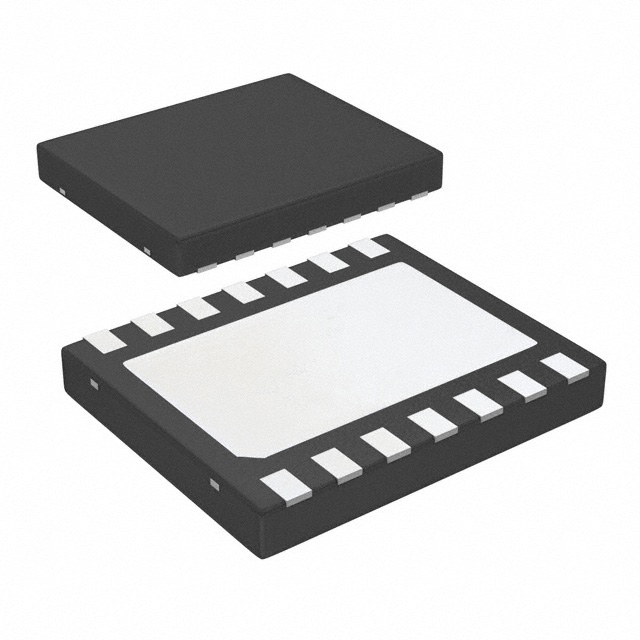

LM2676SD-12
IC REG BUCK 12V 3A 14VSONManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments SIMPLE SWITCHER® LM2676SD-12 is a 3A, fixed 12V output, non-synchronous buck regulator designed for efficient power conversion. This device operates with an input voltage range of 8V to 40V and features an integrated switch, simplifying external component requirements. The LM2676SD-12 utilizes a 260kHz switching frequency, contributing to its compact solution size and high efficiency. Its 14-VSON (5x6) package with an exposed pad enhances thermal performance, making it suitable for demanding applications. This component is commonly found in industrial automation, consumer electronics, and telecommunications power supplies. The output configuration is positive, and it provides a single, fixed 12V output. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-VDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 260kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | 14-VSON (5x6) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | 12V |
Request a Quote
