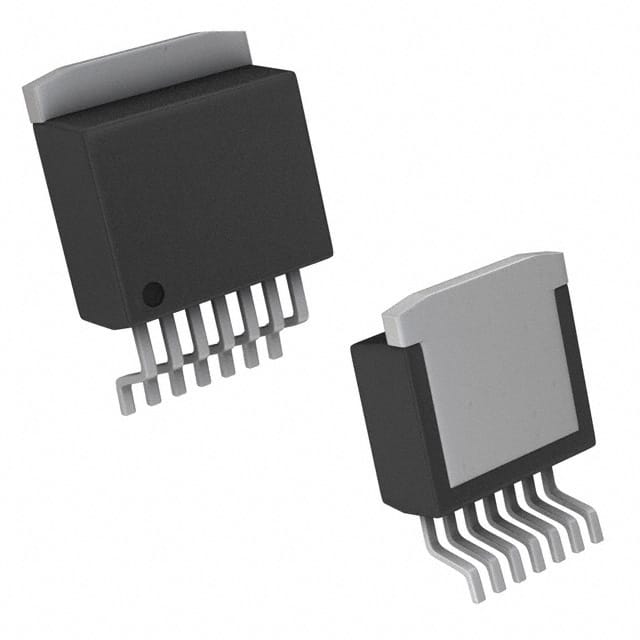

LM2676S-ADJ
IC REG BUCK ADJ 3A DDPAKManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments LM2676S-ADJ, a SIMPLE SWITCHER® buck regulator, offers a robust solution for step-down voltage conversion. This adjustable output device features a 3A output current capability and operates at a 260kHz switching frequency. Its TO-263-8 (D2PAK) package facilitates surface mounting. The regulator accepts input voltages from 8V to 40V, providing an adjustable output voltage range from 1.2V up to 37V. Designed for efficient power management, it is well-suited for applications in consumer electronics, industrial automation, and telecommunications. The internal power switch and synchronous rectifier elimination contribute to its simplified design and thermal performance.
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 260kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | TO-263 (DDPAK-7) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 37V |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | 1.2V |
