LM2676S-3.3
IC REG BUCK 3.3V 3A DDPAKManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More

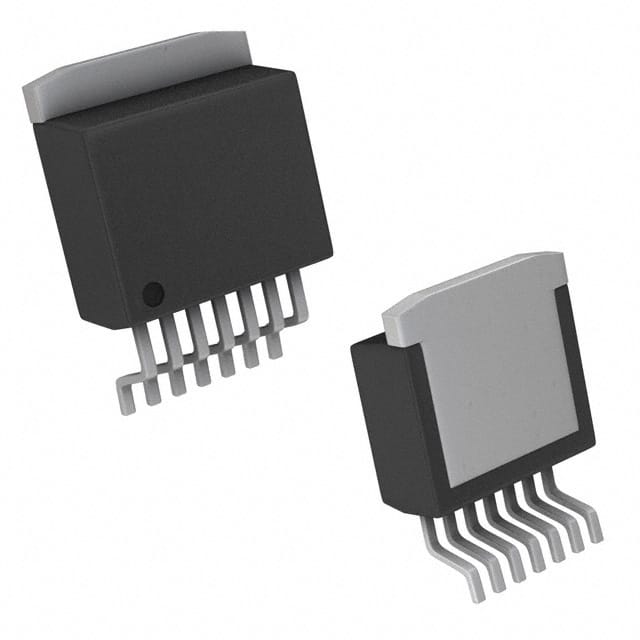

Texas Instruments SIMPLE SWITCHER® LM2676S-3-3 is a monolithic integrated circuit designed for use as a step-down switching regulator. This device provides a fixed 3.3V positive output with a maximum output current of 3A from an input voltage range of 8V to 40V. Featuring a high switching frequency of 260kHz, it enables the use of smaller external components. The LM2676S-3-3 is packaged in a TO-263-8, D2PAK (7 Leads + Tab) surface-mount configuration, also known as DDPAK-7. Its efficient buck topology, without a synchronous rectifier, makes it suitable for applications in power supplies, industrial automation, and consumer electronics. The operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 260kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | TO-263 (DDPAK-7) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | 3.3V |
