LM2619ATLX/NOPB
IC REG BUCK ADJ 500MA 10USMDManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments LM2619ATLX-NOPB is a high-efficiency, adjustable output buck switching regulator designed for step-down voltage conversion. This device offers a 500mA output current capability and operates with a switching frequency of 600kHz. The adjustable output voltage can be set within a range of 1.5V to 3.6V, with a minimum input voltage of 2.8V and a maximum input voltage of 5.5V. Featuring a single positive output configuration, the LM2619ATLX-NOPB incorporates a synchronous rectifier for enhanced efficiency. It is supplied in a compact 10-WFBGA, DSBGA package, suitable for surface mount applications. This component is commonly utilized in portable electronics and power management solutions. The operating temperature range is -25°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

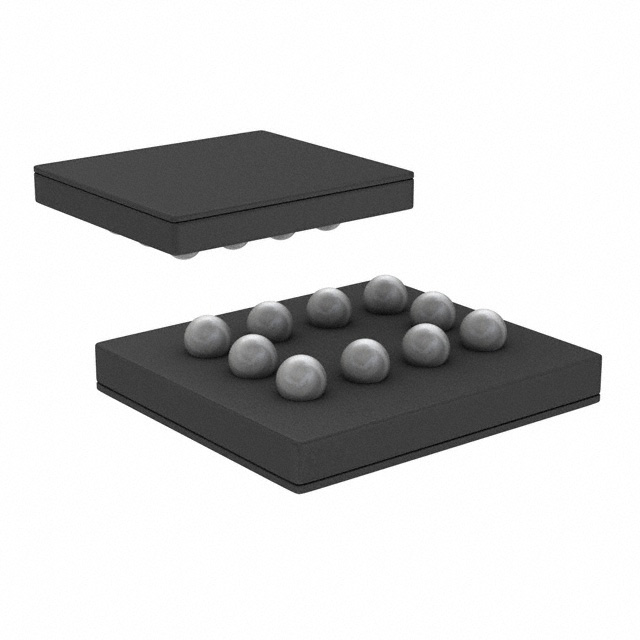

| Package / Case | 10-WFBGA, DSBGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 500mA |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 10-TµSMD (2.25x2.5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 3.6V |
| Voltage - Input (Min) | 2.8V |
| Voltage - Output (Min/Fixed) | 1.5V |
