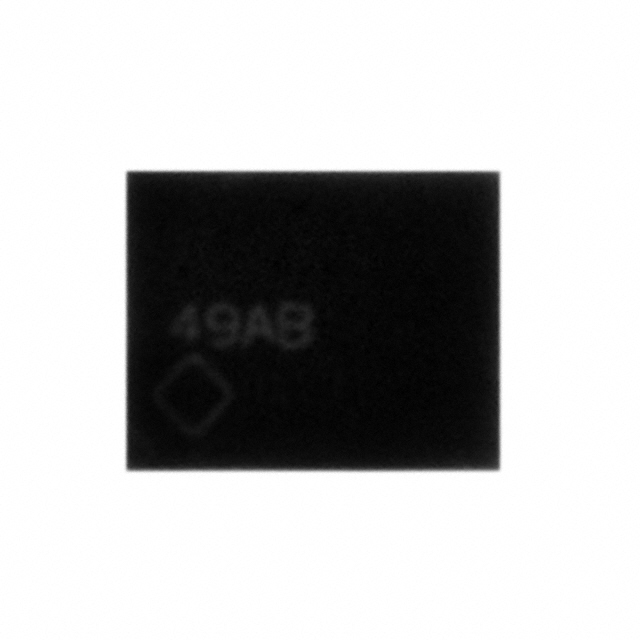

LM2612ABP
IC REG BUCK PROG 400MA 10USMDManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments LM2612ABP is a step-down (buck) switching regulator IC designed for efficient power conversion. This device features a single positive output capable of delivering up to 400mA. The output voltage is programmable, supporting fixed levels of 1.05V, 1.3V, 1.5V, and 1.8V. Operating at a switching frequency of 600kHz, the LM2612ABP utilizes a synchronous rectifier for improved efficiency. It accepts input voltages ranging from 2.8V to 5.5V. The component is housed in a 10-DSBGA package, suitable for surface mounting and supplied on tape and reel. This regulator is commonly utilized in portable electronics and power management applications. The operating temperature range is -25°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFBGA |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 400mA |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 10-DSBGA |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.8V |
| Voltage - Output (Min/Fixed) | 1.05V, 1.3V, 1.5V, 1.8V |
