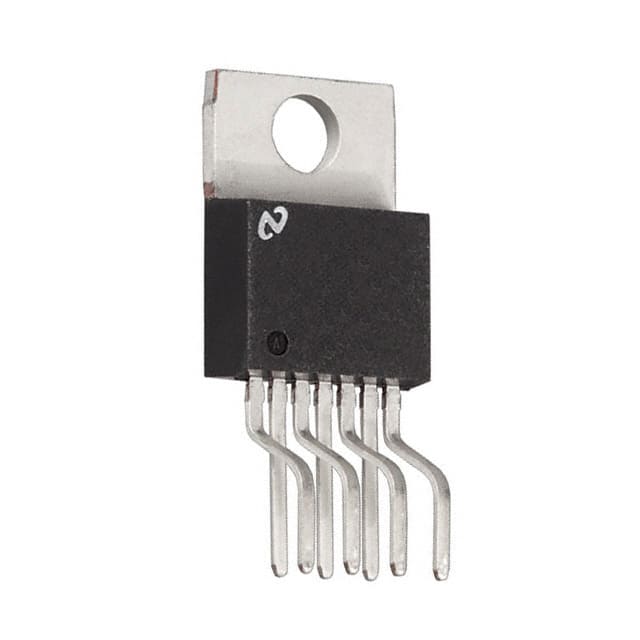

LM2599T-ADJ
IC REG BUCK ADJ 3A TO220-7Manufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments SIMPLE SWITCHER® LM2599T-ADJ is a high-efficiency, step-down (buck) switching regulator IC. This positive, adjustable output device offers a robust 3A output current capability and operates with a fixed switching frequency of 150kHz. Designed for ease of use, it features a minimum output voltage of 1.23V and can regulate down to 37V. The LM2599T-ADJ supports input voltages ranging from 4.5V to 40V. Its TO-220-7 package with formed leads is suitable for through-hole mounting. This component is commonly found in power management solutions across various industries including industrial automation, consumer electronics, and telecommunications. The non-synchronous buck topology ensures reliable performance in demanding applications.
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-220-7 Formed Leads |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 150kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | TO-220-7 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 37V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 1.23V |
Request a Quote
