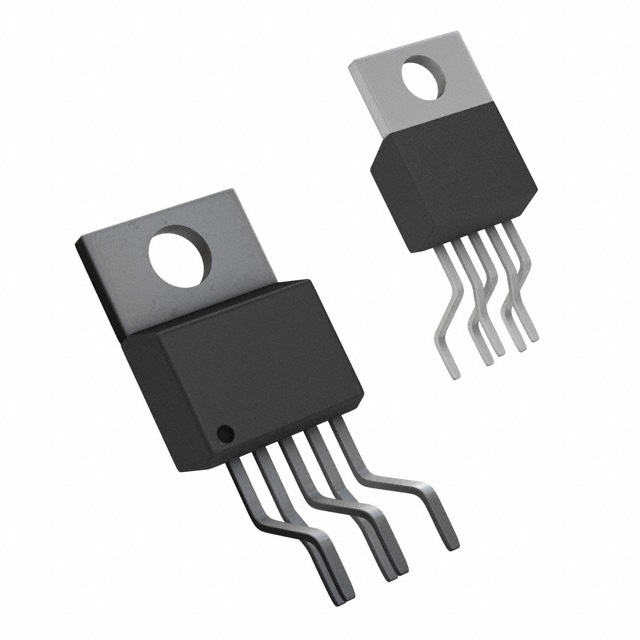

LM2592HVT-3.3/NOPB
IC REG BUCK 3.3V 2A TO220-5Manufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments SIMPLE SWITCHER® LM2592HVT-3-3-NOPB is a 2A, fixed 3.3V output, non-synchronous buck switching regulator. This device operates from a 4.5V to 60V input voltage range, offering a 3.3V positive fixed output. With an integrated switch, it simplifies power supply design and requires minimal external components. The LM2592HVT-3-3-NOPB features a switching frequency of 150kHz, facilitating the use of smaller inductors and capacitors. Its TO-220-5 package with formed leads is suitable for through-hole mounting. This component is commonly utilized in industrial, automotive, and telecommunications applications requiring efficient DC-DC conversion. The operating temperature range is -40°C to 125°C.
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 Formed Leads |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 150kHz |
| Voltage - Input (Max) | 60V |
| Topology | Buck |
| Supplier Device Package | TO-220-5 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
