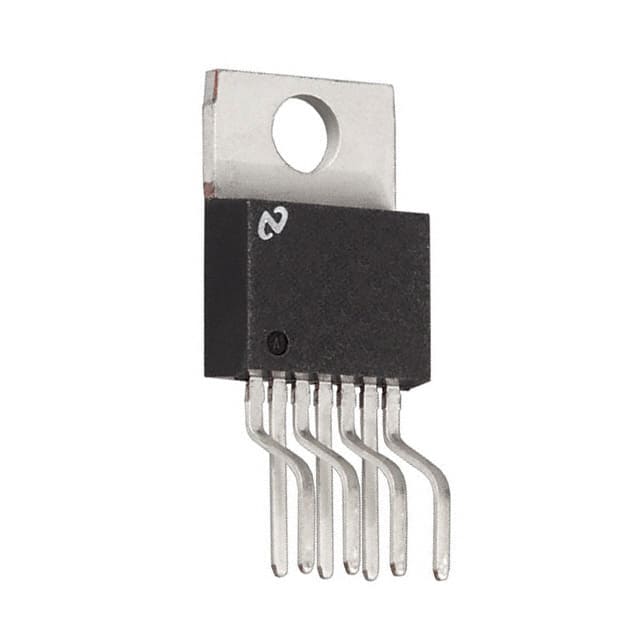

LM2588T-ADJ
IC REG MULT CONFIG ADJ 5A TO220Manufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Texas Instruments LM2588T-ADJ is a high-performance switching regulator IC from the SIMPLE SWITCHER® series, designed for versatile power supply applications. This component integrates a boost, flyback, and forward converter topology, enabling it to function as a step-up or step-up/step-down regulator. It features an adjustable positive output voltage, configurable from a minimum of 1.23V up to 60V, with a maximum input voltage of 40V and a minimum of 4V. The device can deliver an impressive 5A of switch current, supporting a switching frequency range of 100kHz to 200kHz.
Designed for through-hole mounting, the LM2588T-ADJ is housed in a TO-220-7 package. Its operating temperature range is -40°C to 125°C (TJ). This versatile component is widely employed in industrial, automotive, and consumer electronics sectors for power management solutions. The Texas Instruments LM2588T-ADJ is suitable for applications requiring robust and efficient voltage conversion.
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: RoHS non-compliantManufacturer Lead Time: 46 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-7 Formed Leads |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Up/Step-Down |
| Current - Output | 5A (Switch) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 200kHz |
| Voltage - Input (Max) | 40V |
| Topology | Boost, Flyback, Forward Converter |
| Supplier Device Package | TO-220-7 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 60V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 1.23V |
