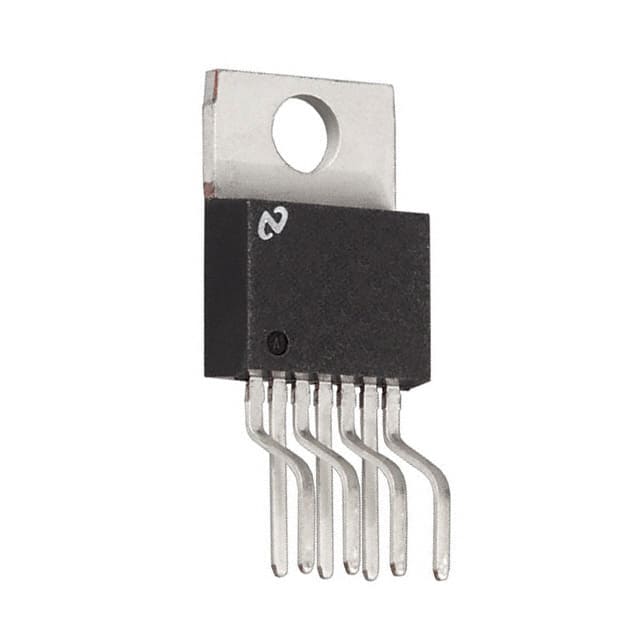

LM2586T-ADJ
IC REG MULT CONFIG ADJ 3A TO220Manufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments SIMPLE SWITCHER® LM2586T-ADJ is a versatile 3A switching regulator IC supporting Boost, Flyback, and Forward converter topologies. This through-hole component offers an adjustable output voltage ranging from 1.23V to 60V, with a maximum input voltage of 40V. Designed for efficient power conversion, it operates with a switching frequency between 100kHz and 200kHz. The device is available in a TO-220-7 package with formed leads, suitable for applications in industrial and automotive sectors. Its single positive output configuration and high current capability make it ideal for demanding power supply designs. Operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-7 Formed Leads |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Up/Step-Down |
| Current - Output | 3A (Switch) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 200kHz |
| Voltage - Input (Max) | 40V |
| Topology | Boost, Flyback, Forward Converter |
| Supplier Device Package | TO-220-7 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 60V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 1.23V |
