LM2586S-ADJ
IC REG MULT CONFIG ADJ 3A DDPAKManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More

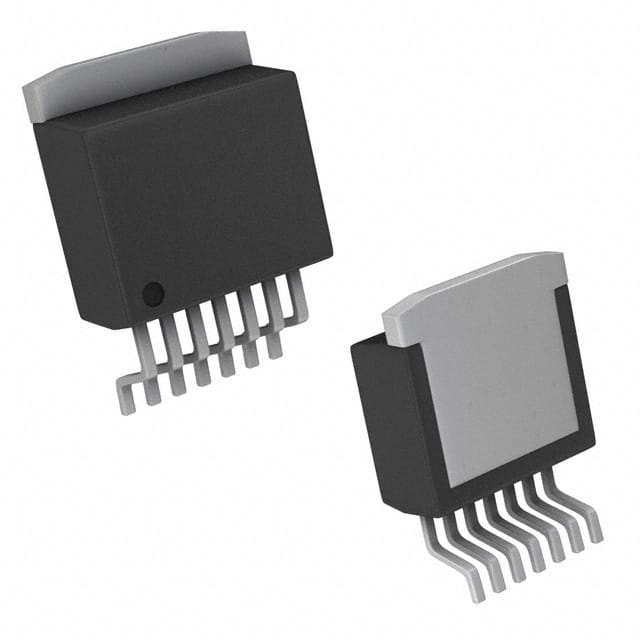

Texas Instruments LM2586S-ADJ is a versatile monolithic switching regulator IC from the SIMPLE SWITCHER® series. This component supports Boost, Flyback, and Forward converter topologies, offering flexible power conversion solutions. It features an adjustable positive output voltage, ranging from 1.23V up to 60V, with a maximum switch current capability of 3A. The operating input voltage range is 4V to 40V.
Designed for surface mounting, the LM2586S-ADJ is housed in a TO-263-8, D2PAK package, facilitating integration into compact designs. Its switching frequency can be set between 100kHz and 200kHz, allowing for optimization of component size and efficiency. This device operates across a wide temperature range of -40°C to 125°C (TJ). Applications for the LM2586S-ADJ include power supplies for industrial automation, automotive systems, and consumer electronics.
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Up/Step-Down |
| Current - Output | 3A (Switch) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 200kHz |
| Voltage - Input (Max) | 40V |
| Topology | Boost, Flyback, Forward Converter |
| Supplier Device Package | TO-263 (DDPAK-7) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 60V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 1.23V |
