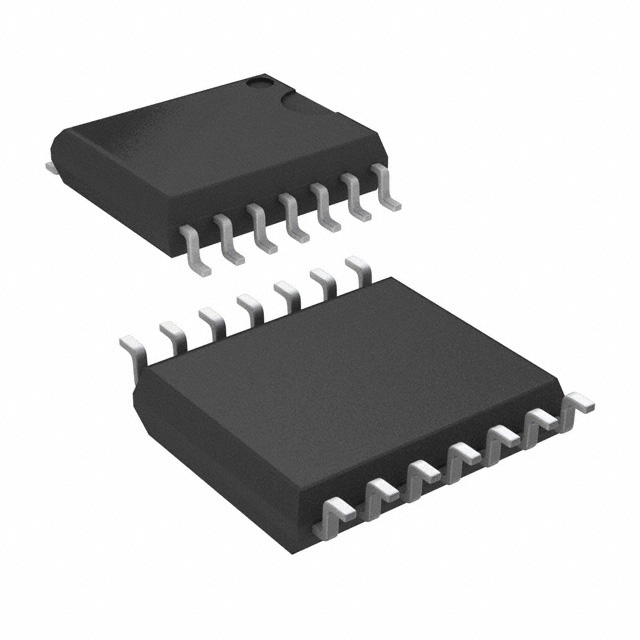

LM2574HVMX-5.0/ELLI947
IC REG BUCK 5V 500MA 14SOICManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Fixed 5V 1 Output 500mA 14-SOIC (0.295"", 7.50mm Width)
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-SOIC (0.295"", 7.50mm Width) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 52kHz |
| Voltage - Input (Max) | 60V |
| Topology | Buck |
| Supplier Device Package | 14-SOIC |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 5V |
