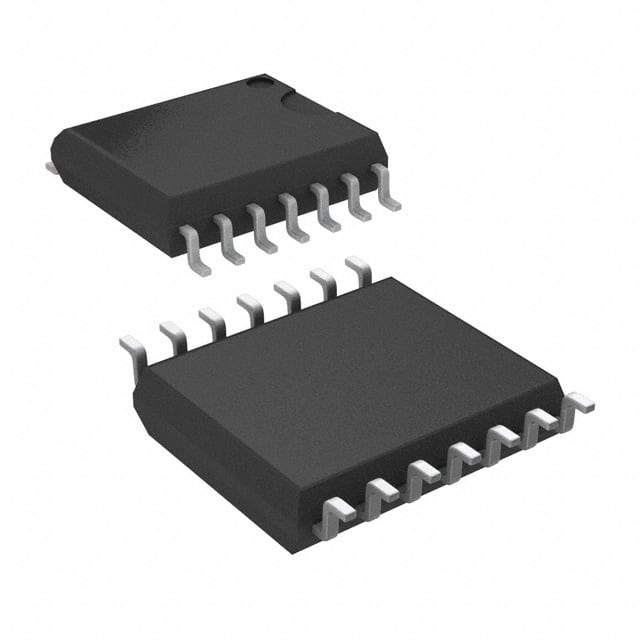

LM2574HVMX-5.0
IC REG BUCK 5V 500MA 14SOICManufacturer: Texas Instruments
Categories: DC DC Switching Regulators
Quality Control: Learn More
Texas Instruments SIMPLE SWITCHER® LM2574HVMX-5-0 is a 5V, 500mA buck switching regulator designed for a broad input voltage range of 4V to 60V. This device features a fixed 5V output and a single positive output configuration, operating at a switching frequency of 52kHz. The LM2574HVMX-5-0 utilizes a non-synchronous buck topology and is housed in a 14-SOIC (0.295", 7.50mm Width) surface-mount package. Its operating temperature range is -40°C to 125°C (TJ). This component is suitable for applications in the industrial, automotive, and consumer electronics sectors. It is supplied on a Tape & Reel (TR) for automated assembly.
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.295"", 7.50mm Width) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 52kHz |
| Voltage - Input (Max) | 60V |
| Topology | Buck |
| Supplier Device Package | 14-SOIC |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 5V |
