UCD9112RHBT
IC REG CTRLR BUCK 32VQFNManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More

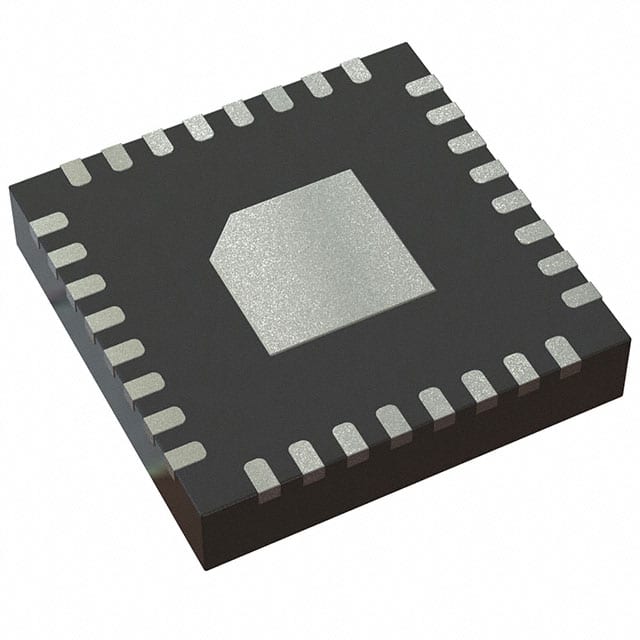

The Texas Instruments UCD9112RHBT is a highly efficient DC-DC controller IC designed for step-down power conversion. This component, packaged in a 32-VQFN (5x5) with an exposed pad, facilitates surface mount assembly. It operates as a buck regulator, offering precise voltage control with a selectable switching frequency range of 250kHz to 1MHz. The UCD9112RHBT features two outputs, though it utilizes a single output phase for its PWM signal output. Key control features include current limiting, power good indication, and tracking capabilities. This device is suitable for demanding applications across various industries requiring robust power management. Its operating temperature range is -40°C to 125°C (TJ). The UCD9112RHBT is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Output Type | PWM Signal |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz ~ 1MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3.14V ~ 3.46V |
| Supplier Device Package | 32-VQFN (5x5) |
| Synchronous Rectifier | No |
| Control Features | Current Limit, Power Good, Tracking |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | No |
| Number of Outputs | 2 |
