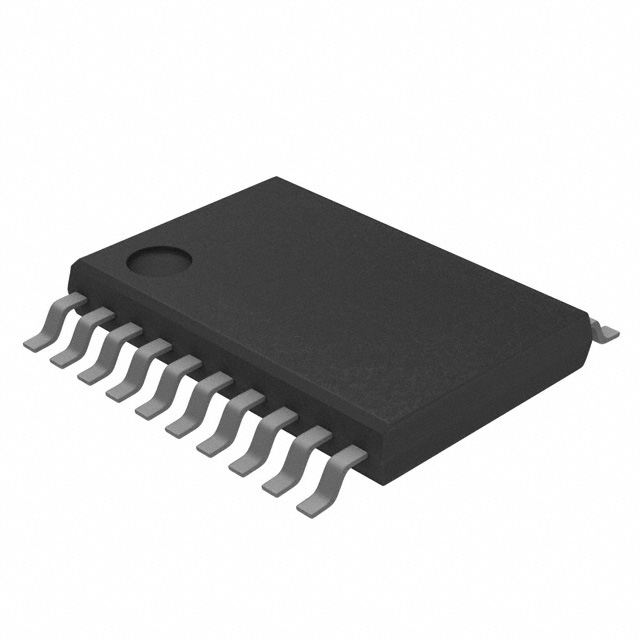

UCC3895PWTR
IC OFFLINE SW FULL-BRG 20TSSOPManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Phase-Shifted Full-Bridge Regulator Positive Output DC-DC Controller IC 20-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Output Type | PWM |
| Mounting Type | Surface Mount |
| Function | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz |
| Topology | Phase-Shifted Full-Bridge |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 16.5V |
| Supplier Device Package | 20-TSSOP |
| Synchronous Rectifier | - |
| Control Features | Frequency Control, Soft Start, Sync |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
