UCC3580D-3

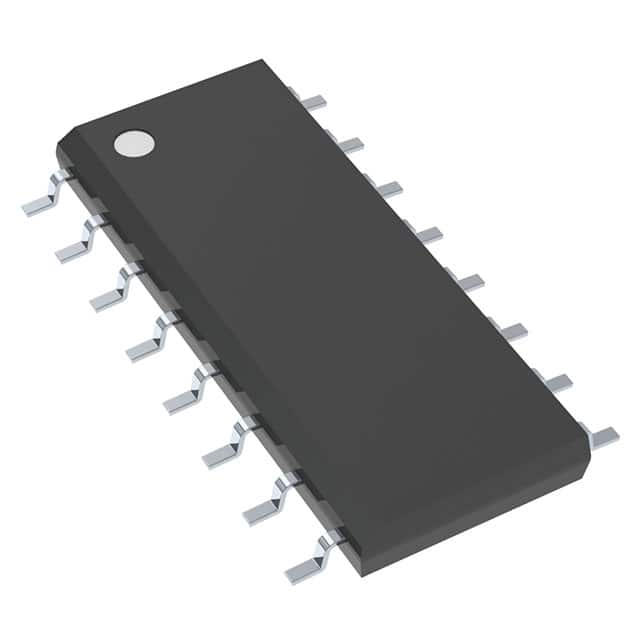

IC REG CTRLR FWRD CONV 16SOICManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Texas Instruments UCC3580D-3 is a versatile DC-DC controller IC designed for forward converter topologies. This device facilitates both step-up and step-down voltage conversion, supporting positive or negative output configurations with a transistor driver output type. Operating at a switching frequency of 400kHz, it offers a maximum duty cycle of 66% and includes control features such as Enable, Ramp, and Soft Start. The UCC3580D-3 is housed in a 16-SOIC package suitable for surface mounting and operates within a voltage supply range of 8.5V to 16V, with an ambient temperature range of 0°C to 70°C. This component is commonly utilized in industrial automation and power supply applications requiring efficient and flexible DC-DC regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 400kHz |
| Topology | Forward Converter |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 16V |
| Supplier Device Package | 16-SOIC |
| Synchronous Rectifier | No |
| Control Features | Enable, Ramp, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 66% |
| Clock Sync | No |
| Number of Outputs | 2 |
