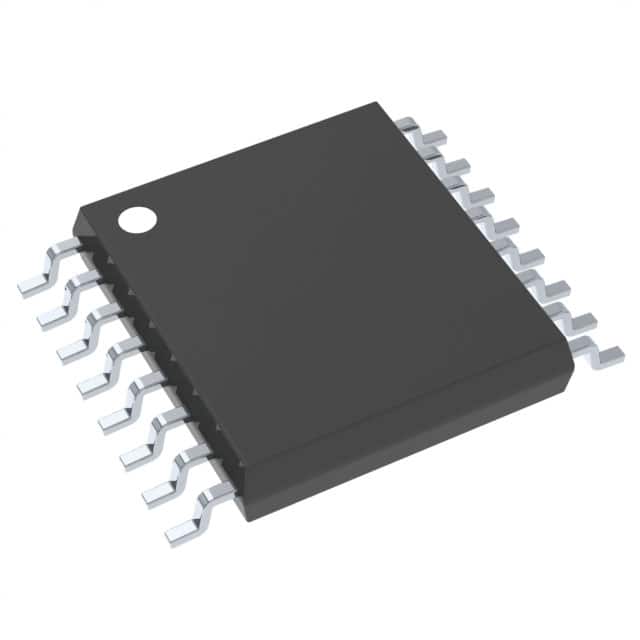

UCC29421PW
IC REG CTRLR MULT TOP 16TSSOPManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 16-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 150kHz ~ 1.2MHz |
| Topology | Boost, Flyback, SEPIC |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 8V |
| Supplier Device Package | 16-TSSOP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Low Battery, Reset |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 88% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
