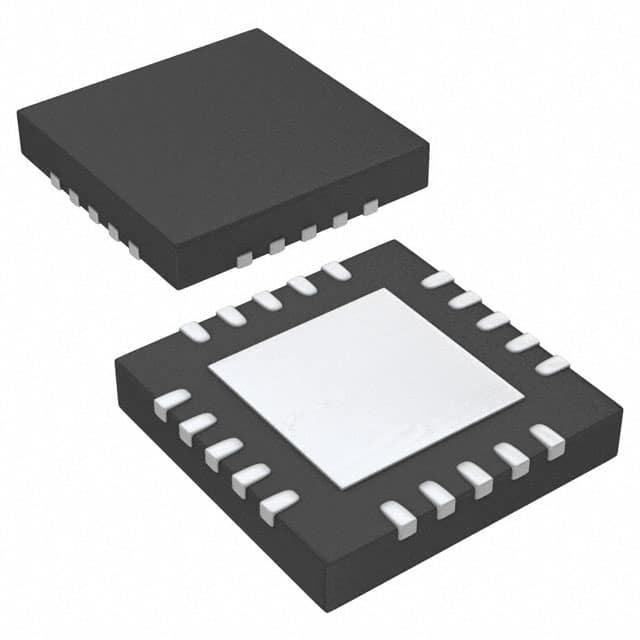

UCC2897RTJR
IC REG CTRLR MULT TOPOLOGY 20QFNManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Texas Instruments UCC2897RTJR is a versatile DC-DC controller IC designed for advanced power supply applications. This component is optimized for flyback and forward converter topologies, offering both step-up and step-down functionality. Key control features include Enable, On Time Control, and Soft Start to manage power delivery and system transients. With a maximum duty cycle of 74% and a switching frequency of 250kHz, it provides efficient power conversion. The UCC2897RTJR supports positive output configurations with isolation capability and includes synchronous rectification for enhanced efficiency. Its 20-QFN (4x4) package with an exposed pad is suitable for surface mount applications and operates across a temperature range of -40°C to 105°C. This device finds application in various industries requiring robust and efficient power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 250kHz |
| Topology | Flyback, Forward Converter |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 14.5V |
| Supplier Device Package | 20-QFN (4x4) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, On Time Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 74% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
