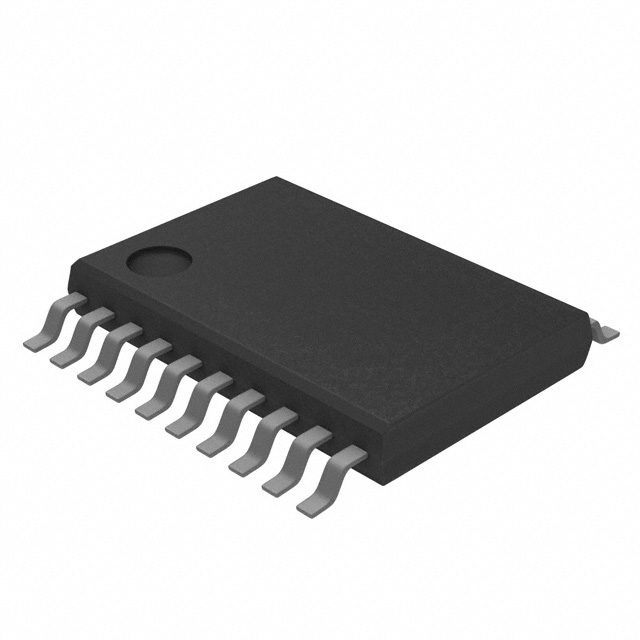

UCC2897PWR
IC REG CTRLR MULT TOP 20TSSOPManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Flyback, Forward Converter Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 20-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 250kHz |
| Topology | Flyback, Forward Converter |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 14.5V |
| Supplier Device Package | 20-TSSOP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, On Time Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 74% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
