UC3874N-1
IC REG CTRLR BUCK 18DIPManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More

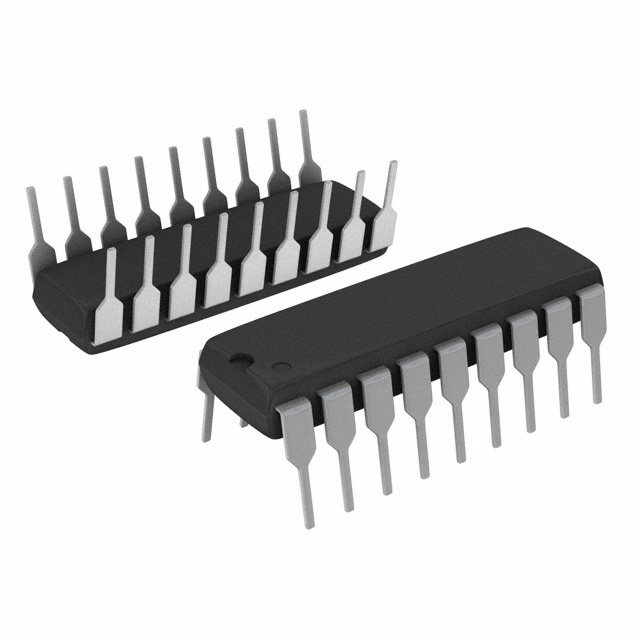

Texas Instruments UC3874N-1 is an 18-pin Through Hole Buck regulator controller IC. This device, a positive output step-down DC-DC controller, features a transistor driver output and a synchronous rectifier. It operates from a 9V to 36V supply voltage with a maximum duty cycle of 100% and supports switching frequencies up to 300kHz. The UC3874N-1 includes a soft-start control feature, enabling controlled power-up. This component is commonly utilized in power supply designs across various industries, including industrial automation, consumer electronics, and telecommunications equipment. The package is an 18-DIP (0.300", 7.62mm) supplied in a tube.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.300"", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Down |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 300kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 36V |
| Supplier Device Package | 18-PDIP |
| Synchronous Rectifier | Yes |
| Control Features | Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | No |
| Number of Outputs | 1 |
Request a Quote
