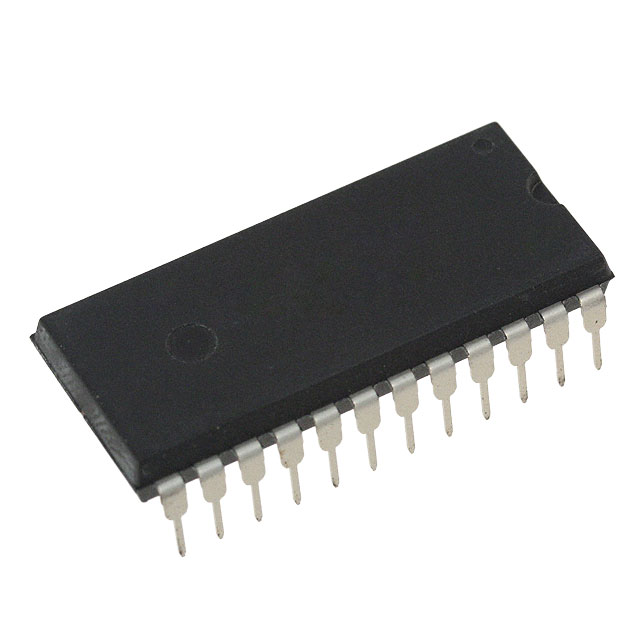

UC3827N-1G4
IC REG CTRLR MULT TOPOLOGY 24DIPManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck, Full-Bridge, Push-Pull Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 24-PDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.600"", 15.24mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Down, Step-Up/Step-Down |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 220kHz |
| Topology | Buck, Full-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 7.6V ~ 20V |
| Supplier Device Package | 24-PDIP |
| Synchronous Rectifier | Yes |
| Control Features | Frequency Control, Ramp, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 91% |
| Clock Sync | Yes |
| Number of Outputs | 3 |
