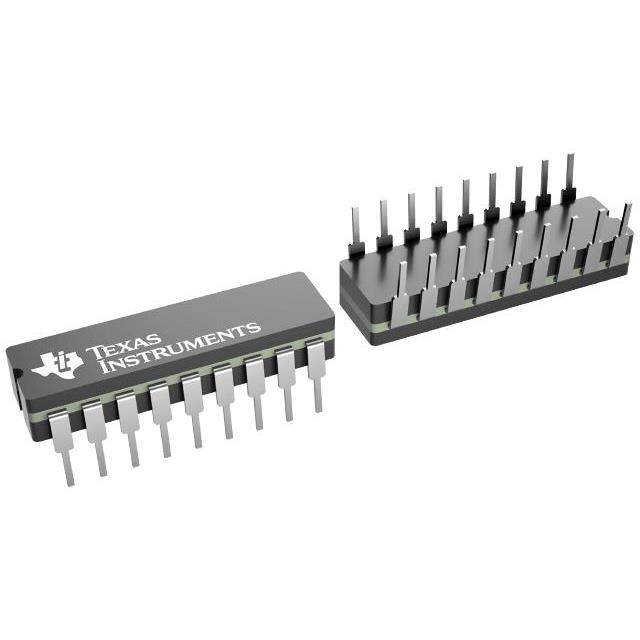

UC1526J
REGULATING PULSE WIDTH MODULATORManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive and Negative Output Step-Up/Step-Down DC-DC Controller IC 18-CDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-CDIP (0.300"", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Up/Step-Down |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Output Configuration | Positive and Negative |
| Frequency - Switching | 1Hz ~ 400kHz |
| Topology | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
| Supplier Device Package | 18-CDIP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Reset, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 49% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
