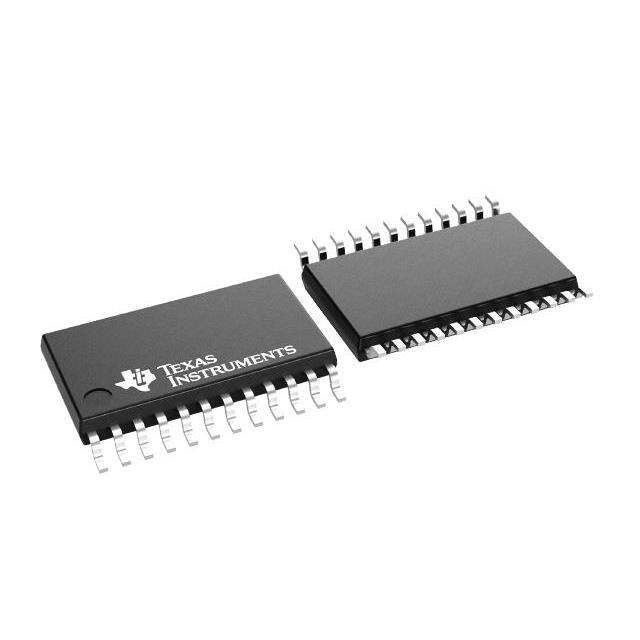

TPS7H5007MPWTSEP
RADIATION-TOLERANT 2-MHZ PWM CONManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck, Flyback, Forward Converter Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 24-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down, Step-Up/Step-Down |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 2MHz |
| Topology | Buck, Flyback, Forward Converter |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 14V |
| Supplier Device Package | 24-TSSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Dead Time Control, Enable, Frequency Control, Soft Start, Sync |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
