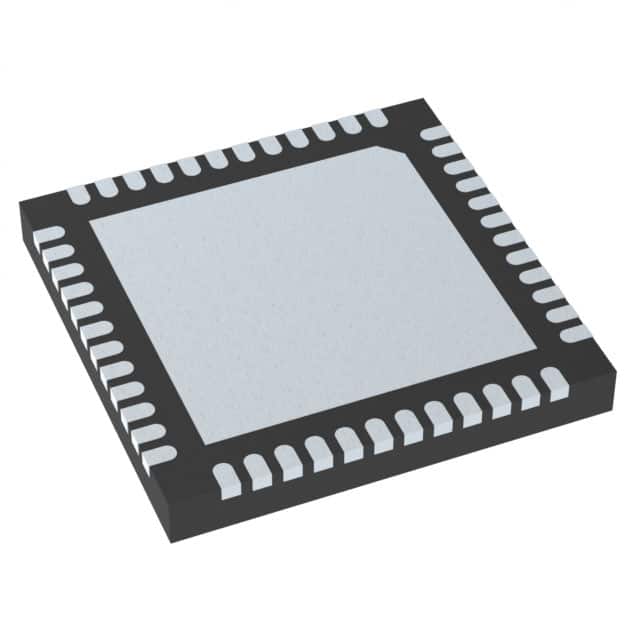

TPS536C7B1RSLR
IC POWERManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down PMBus DC-DC Controller IC 48-VQFN (6x6)
Additional Information
Series: D-CAP+™RoHS Status: Not applicableManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Output Type | PWM |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 2MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 18V |
| Supplier Device Package | 48-VQFN (6x6) |
| Synchronous Rectifier | No |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Ramp, Soft Start |
| Serial Interfaces | PMBus |
| Output Phases | 12 |
| Duty Cycle (Max) | 50% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
