TPS53119RGTT
DC-DC CONTROLLERManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More

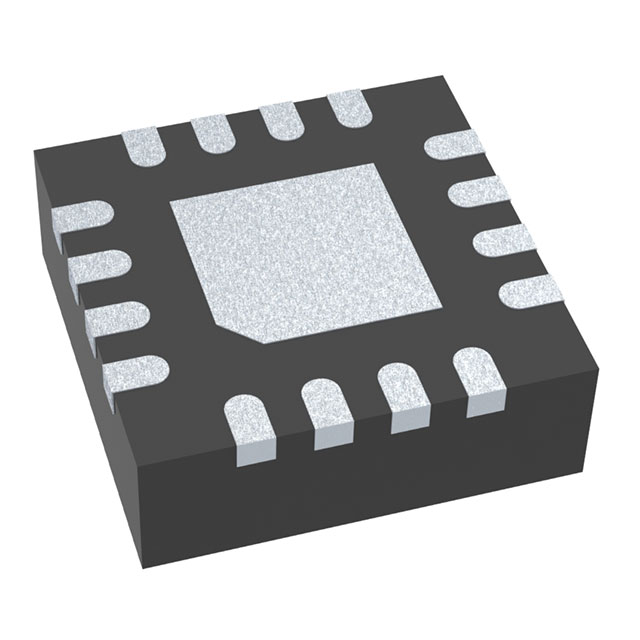

Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-VQFN (3x3)
Additional Information
Series: D-CAP+™, Eco-Mode™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 1.07MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 25V |
| Supplier Device Package | 16-VQFN (3x3) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 90% |
| Clock Sync | No |
| Number of Outputs | 1 |
