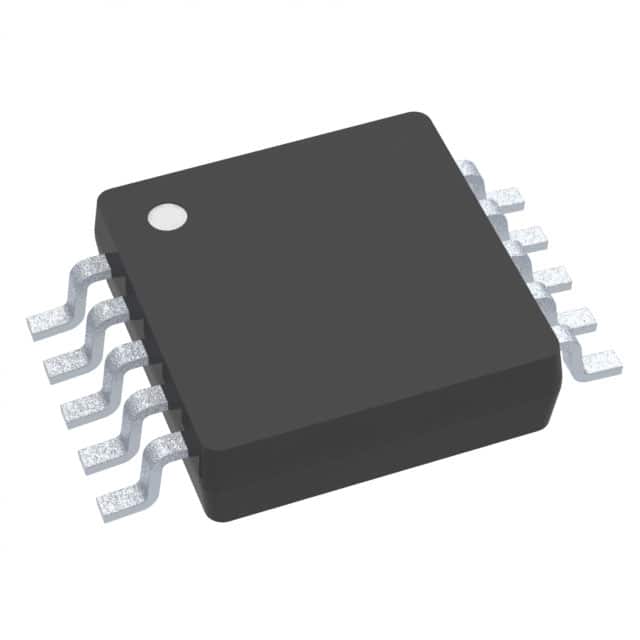

TPS53014DGS
IC REG CTRLR BUCK 10MSOPManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Texas Instruments TPS53014DGS is a highly efficient, single-phase, synchronous buck controller designed for advanced power management applications. This D-CAP2™ and Eco-Mode™ series component features a 4.5V to 28V input voltage range and a 500kHz switching frequency, optimizing power conversion for a wide array of demanding systems. Its 10-VSSOP package facilitates surface mount integration. Key control features include Enable and Soft Start, providing robust command over power sequencing. The TPS53014DGS is employed in industrial automation, communications infrastructure, and consumer electronics for its reliable step-down DC-DC conversion. Its output configuration is positive, and it supports a single output phase with a transistor driver output type. The operating temperature range is -40°C to 85°C (TA).
Additional Information
Series: D-CAP2™, Eco-Mode™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 28V |
| Supplier Device Package | 10-VSSOP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 1 |
