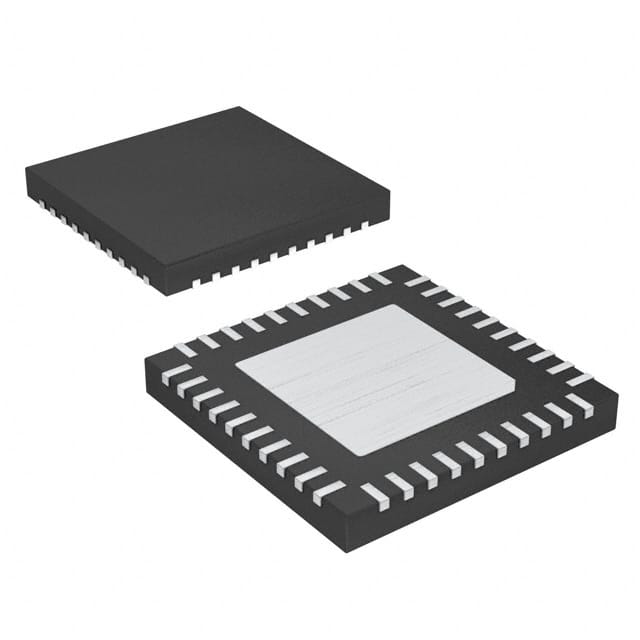

TPS40422RSBR
IC REG CTRLR BUCK PMBUS 40WQFNManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down PMBus DC-DC Controller IC 40-WQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 1MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 20V |
| Supplier Device Package | 40-WQFN (5x5) |
| Synchronous Rectifier | Yes |
| Control Features | Frequency Control, Power Good |
| Serial Interfaces | PMBus |
| Output Phases | 2 |
| Duty Cycle (Max) | - |
| Clock Sync | Yes |
| Number of Outputs | 2 |
