TPS40130DBTR
IC REG CTRLR BUCK 30TSSOPManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Texas Instruments TPS40130DBTR is a highly integrated, synchronous buck controller designed for efficient step-down DC-DC conversion. This device features a flexible operating frequency range from 100kHz to 1.2MHz, with built-in clock synchronization capabilities. The TPS40130DBTR supports dual output phases for enhanced power delivery and incorporates advanced control features including current limit, enable, frequency control, power good signaling, and soft-start. Its robust design allows for a wide input voltage range of 3V to 40V, with a maximum duty cycle of 87.5%. The device is housed in a 30-TSSOP package, suitable for surface mounting. Applications for this component span across industrial power supplies, networking equipment, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

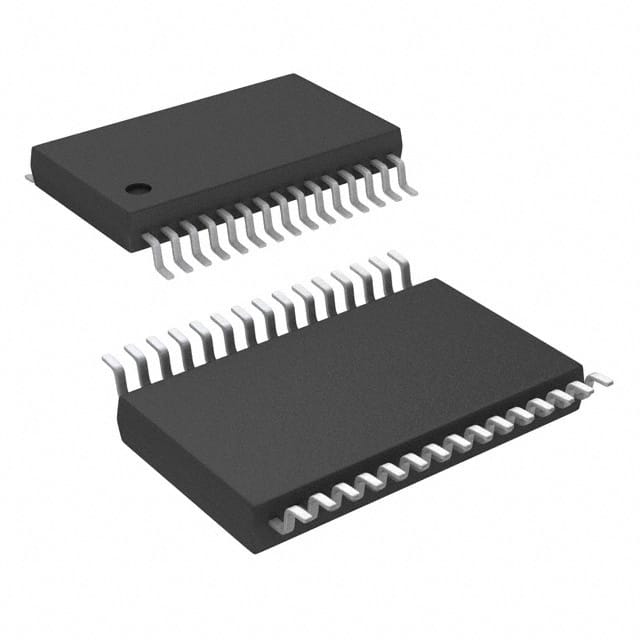

| Package / Case | 30-TFSOP (0.173"", 4.40mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 1.2MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 40V |
| Supplier Device Package | 30-TSSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 87.5% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
