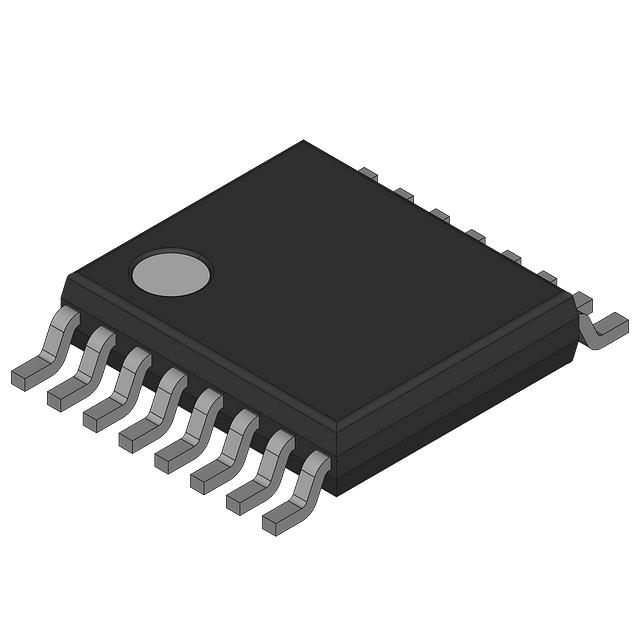

TPS40057PWP
IC REG CTRLR BUCK 16HTSSOPManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 1MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 40V |
| Supplier Device Package | 16-HTSSOP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Frequency Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 94% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
