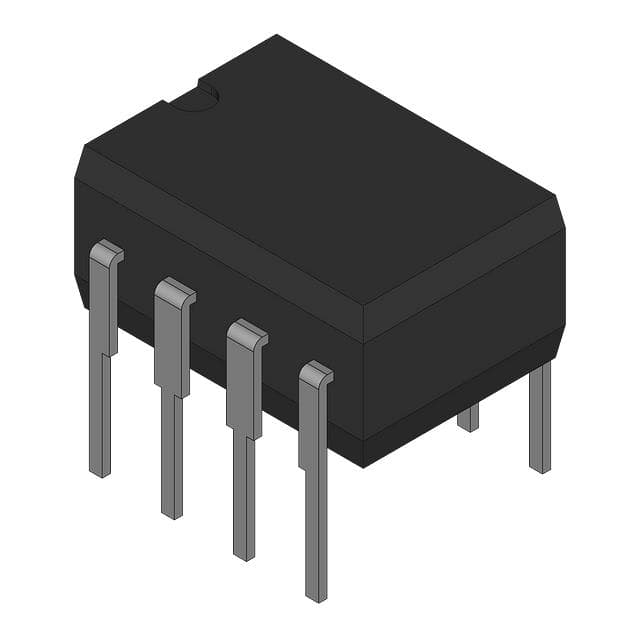

TL5001AMJGB
TL5001A PWM CONTROLLER WITH WIDEManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost, Buck, Flyback Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 8-CDIP
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-CDIP (0.300"", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 20kHz ~ 500kHz |
| Topology | Boost, Buck, Flyback |
| Voltage - Supply (Vcc/Vdd) | 3.6V ~ 40V |
| Supplier Device Package | 8-CDIP |
| Synchronous Rectifier | No |
| Control Features | Dead Time Control, Frequency Control, Ramp, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 1 |
| Clock Sync | No |
| Number of Outputs | 1 |
Request a Quote
