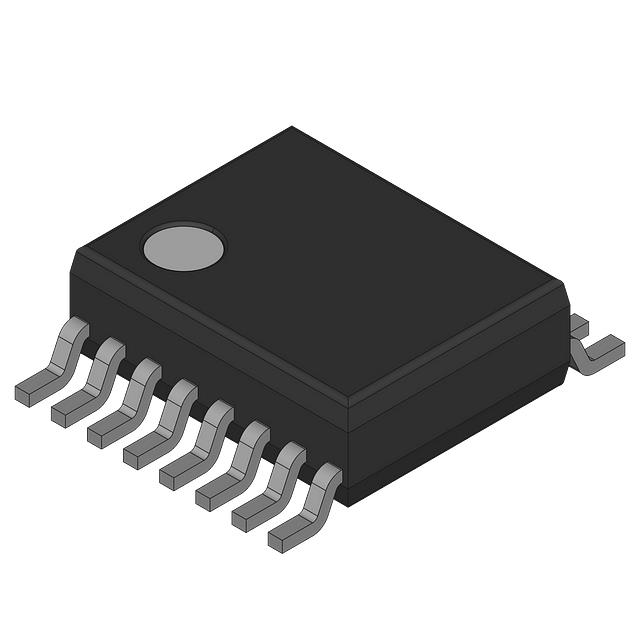

TL494CDB
SWITCHING CONTROLLERManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-SSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-SSOP (0.209"", 5.30mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1kHz ~ 300kHz |
| Topology | Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 40V |
| Supplier Device Package | 16-SSOP |
| Synchronous Rectifier | No |
| Control Features | Dead Time Control, Frequency Control |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 45% |
| Clock Sync | No |
| Number of Outputs | 2 |
Request a Quote
