LM51551QDSSRQ1
IC POWER MANAGEMENTManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 12-WSON (3x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

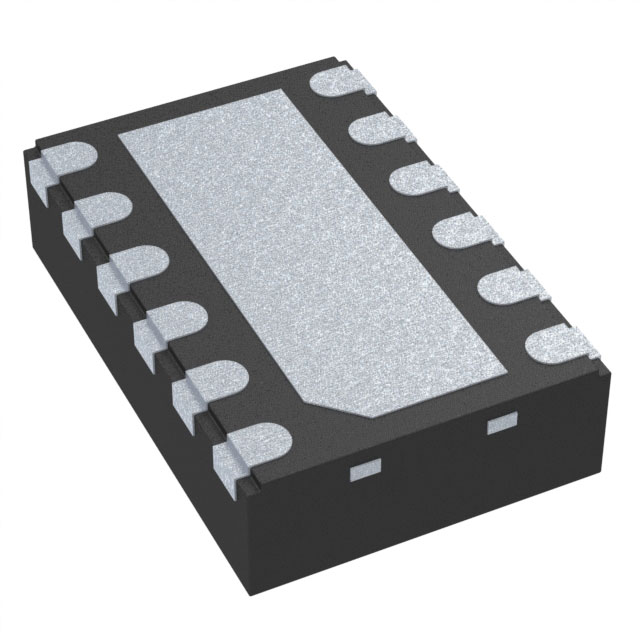

| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount, Wettable Flank |
| Function | Step-Up, Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 2.2MHz |
| Topology | Boost, Flyback, SEPIC |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 45V |
| Supplier Device Package | 12-WSON (3x2) |
| Synchronous Rectifier | No |
| Control Features | Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 93% |
| Clock Sync | Yes |
| Grade | Automotive |
| Number of Outputs | 1 |
| Qualification | AEC-Q100 |
