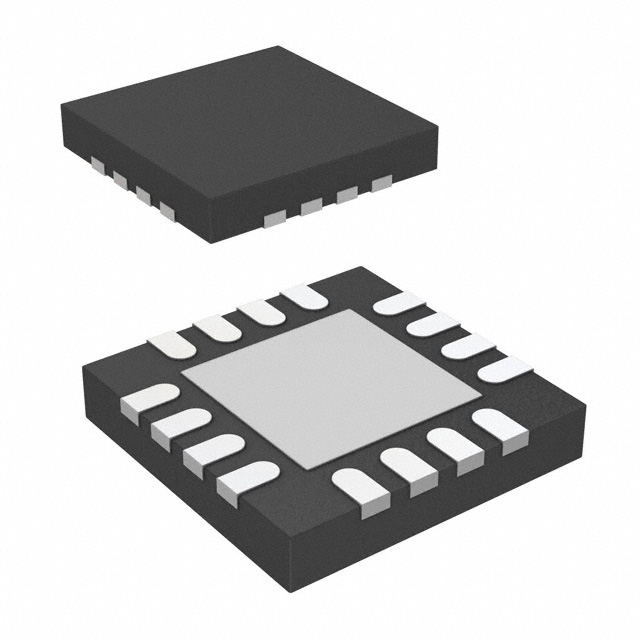

LM51501QWRUMRQ1
AUTOMOTIVE 1.5-V TO 42-V VIN, LOManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost Regulator Positive Output Step-Up DC-DC Controller IC 16-WQFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 220kHz ~ 2.3MHz |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) | 1.5V ~ 42V |
| Supplier Device Package | 16-WQFN (4x4) |
| Synchronous Rectifier | No |
| Control Features | Current Limit, Enable, Frequency Control, Sync |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 93% |
| Clock Sync | Yes |
| Grade | Automotive |
| Number of Outputs | 1 |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy

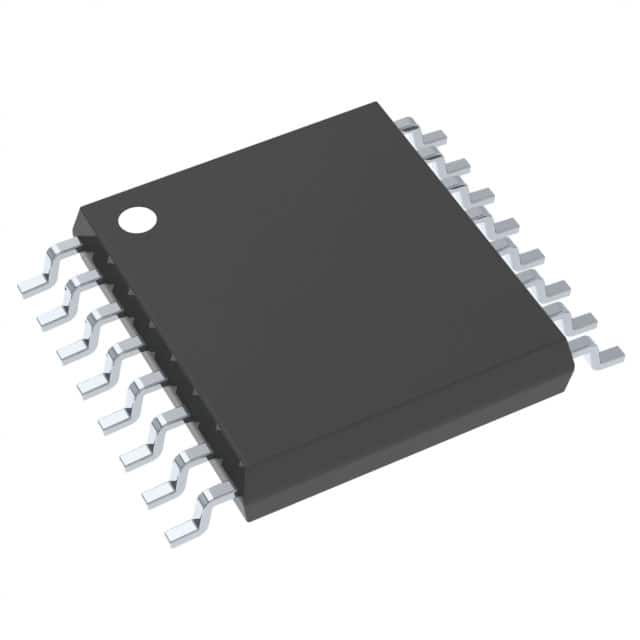

TL1454ACPWR
