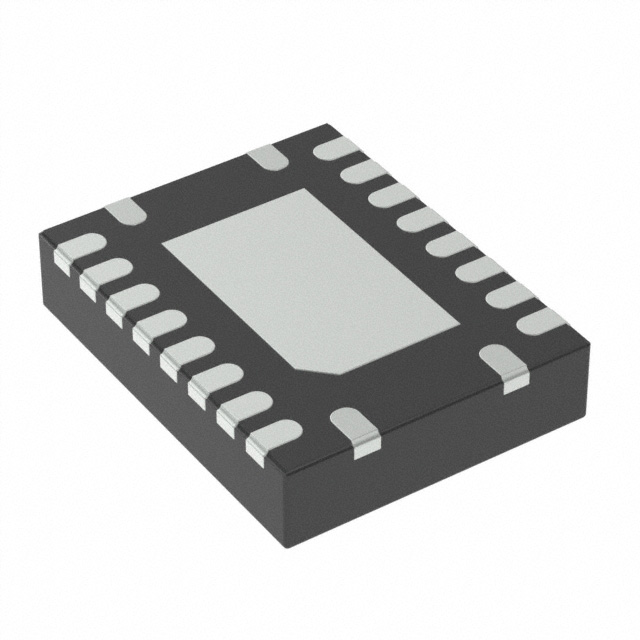

LM5146QRGYTQ1
IC REG BUCK ADJ 3.5A 20VQFNManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-VQFN (4.5x3.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount, Wettable Flank |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 1MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 5.5V ~ 100V |
| Supplier Device Package | 20-VQFN (4.5x3.5) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 99% |
| Clock Sync | Yes |
| Grade | Automotive |
| Number of Outputs | 1 |
| Qualification | AEC-Q100 |
