LM5116MH
LM5116 6-100V WIDE VIN, CURRENTManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More

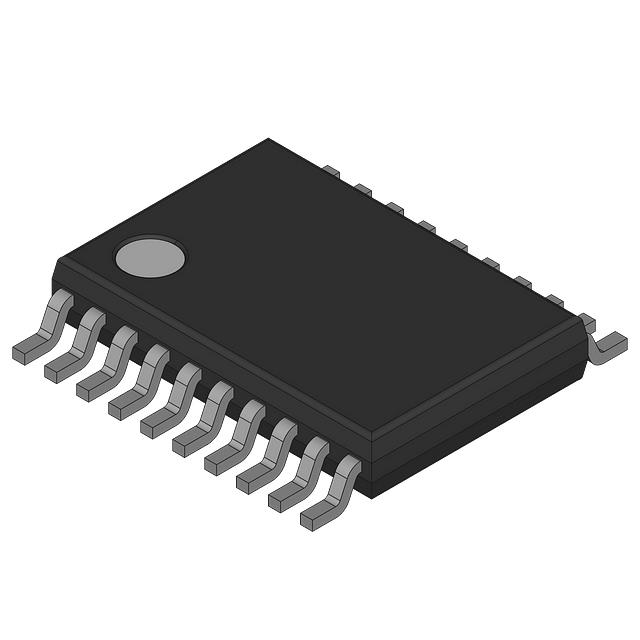

Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-HTSSOP
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz, 535kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 100V |
| Supplier Device Package | 20-HTSSOP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Ramp, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | Yes |
| Number of Outputs | 1 |
