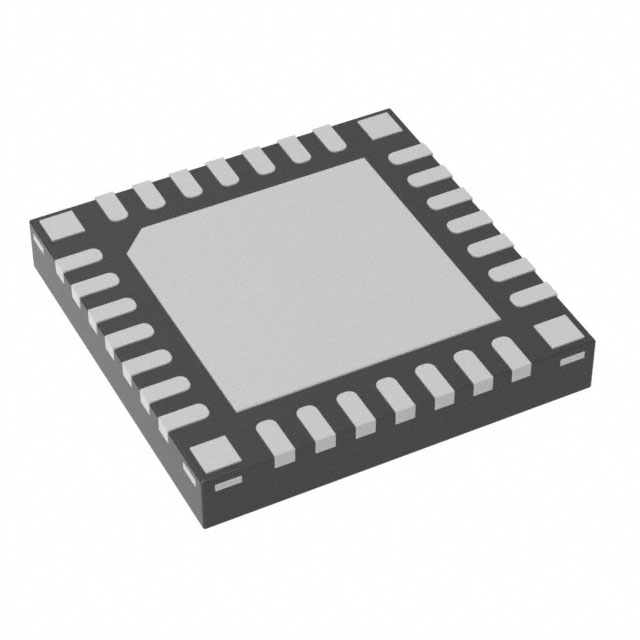

LM5036RJBR
HALF BRIDGE CONTROLLER W/INTEGRAManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Half-Bridge Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 28-WQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Output Type | PWM |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 2MHz |
| Topology | Half-Bridge |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 8.1V |
| Supplier Device Package | 28-WQFN (5x5) |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Frequency Control, Ramp |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 50% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
