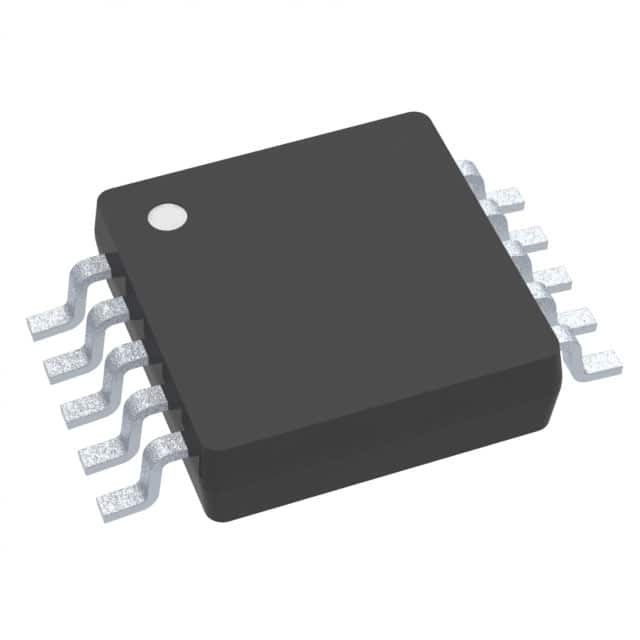

LM5030MM
IC REG CTRLR MULT TOP 10MSOPManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Texas Instruments LM5030MM is a versatile DC-DC controller IC designed for high-voltage applications. This component supports multiple topologies, including Full-Bridge, Half-Bridge, and Push-Pull configurations, enabling both step-up and step-down voltage conversion with isolation capability. It features two outputs and is suitable for positive output voltage generation. The LM5030MM operates from a wide supply voltage range of 14V to 90V and offers selectable switching frequencies of 200kHz and 600kHz, with a maximum duty cycle of 50%. Control features include frequency control and soft-start functionality. The device is housed in a 10-VSSOP package, suitable for surface mounting. It finds application in power supplies, industrial automation, and telecommunications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 200kHz, 600kHz |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 14V ~ 90V |
| Supplier Device Package | 10-VSSOP |
| Synchronous Rectifier | No |
| Control Features | Frequency Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 50% |
| Clock Sync | No |
| Number of Outputs | 2 |
