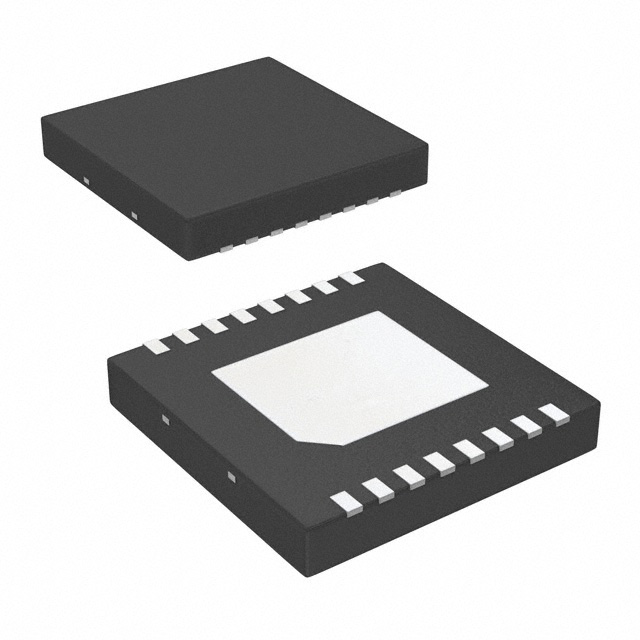

LM5025ASD/NOPB
IC REG CTRLR FWRD CONV 16WSONManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
The Texas Instruments LM5025ASD-NOPB is a versatile DC-DC controller designed for forward converter topologies. This device facilitates positive, isolation-capable output configurations, supporting both step-up and step-down functionality. Key control features include adjustable dead time control, frequency control, ramp generation, and soft-start capabilities. The operating switching frequency range is from 200kHz to 580kHz, with a maximum duty cycle of 80%. This component is housed in a 16-WSON (5x5) surface mount package and is supplied on tape and reel. The LM5025ASD-NOPB is engineered for applications requiring efficient power conversion, including industrial power supplies, telecommunications equipment, and automotive systems. It operates within an ambient temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFDFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 200kHz ~ 580kHz |
| Topology | Forward Converter |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Supplier Device Package | 16-WSON (5x5) |
| Synchronous Rectifier | No |
| Control Features | Dead Time Control, Frequency Control, Ramp, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 80% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
