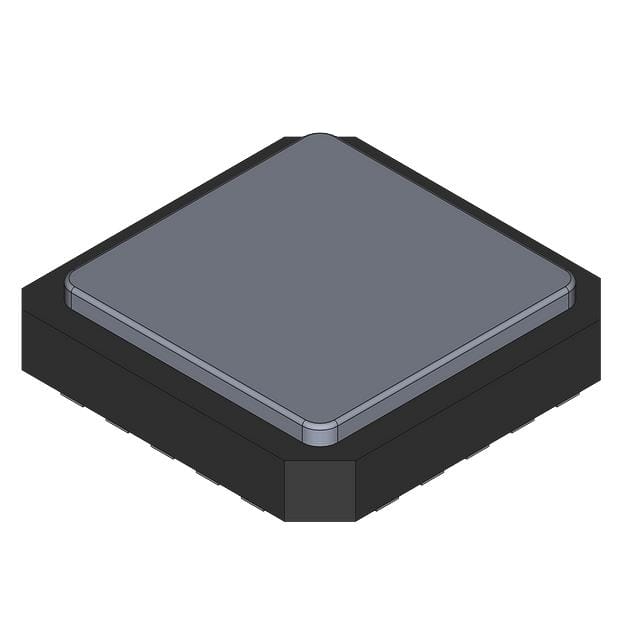

5962-9453001M2A
UC1856 IMPROVED CURRENT MODE PWMManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 20-LCCC (8.89x8.89)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-CLCC |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Up/Step-Down |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz |
| Topology | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 40V |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
| Synchronous Rectifier | No |
| Control Features | Current Limit, Enable, Frequency Control, Soft Start, Sync |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 50% |
| Clock Sync | No |
| Number of Outputs | 2 |
Request a Quote
