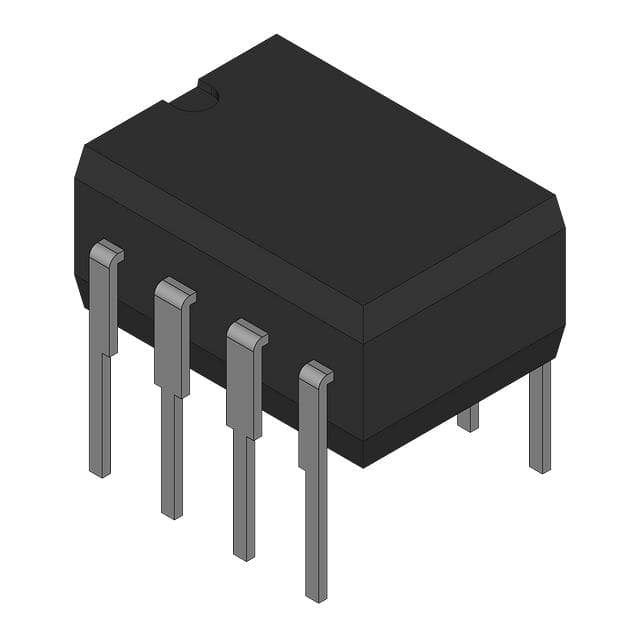

5962-9451301MPA
UCC1801 LOW-POWER BICMOS CURRENTManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost, Flyback, Forward Converter Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-CDIP
Additional Information
Series: UCC280xRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-CDIP (0.300"", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Up, Step-Up/Step-Down |
| Operating Temperature | -55°C ~ 125°C |
| Output Configuration | Positive |
| Frequency - Switching | Up to 1MHz |
| Topology | Boost, Flyback, Forward Converter |
| Voltage - Supply (Vcc/Vdd) | 7.4V ~ 12V |
| Supplier Device Package | 8-CDIP |
| Synchronous Rectifier | No |
| Control Features | Current Limit, Dead Time Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 49% |
| Clock Sync | No |
| Number of Outputs | 1 |
