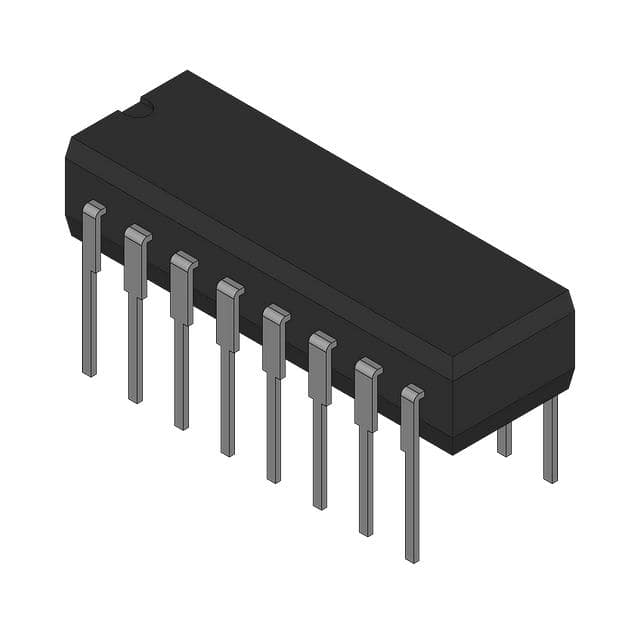

5962-8951104EA
UC1527A REGULATING PULSE WIDTH MManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive and Negative Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-CDIP
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-CDIP (0.300"", 7.62mm) |
| Output Type | PWM |
| Mounting Type | Through Hole |
| Function | Step-Down, Step-Up/Step-Down |
| Operating Temperature | -55°C ~ 125°C |
| Output Configuration | Positive and Negative |
| Frequency - Switching | 100Hz ~ 500kHz |
| Topology | Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 35V |
| Supplier Device Package | 16-CDIP |
| Synchronous Rectifier | Yes |
| Control Features | Dead Time Control, Enable, Frequency Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 49% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
