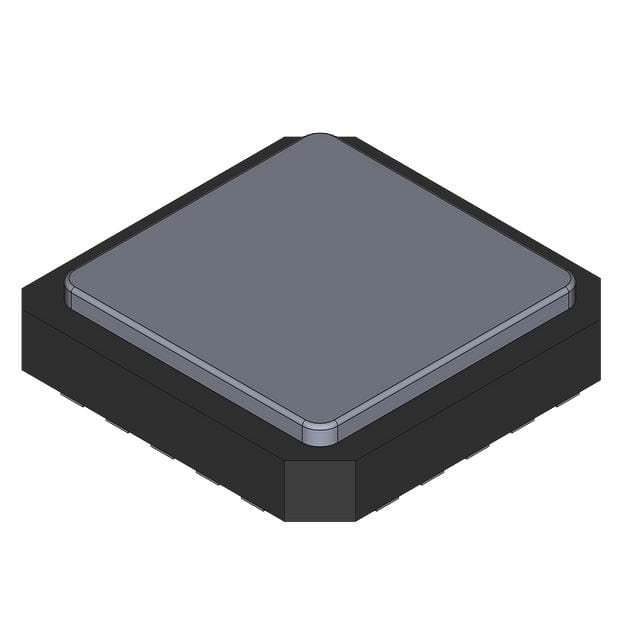

5962-8680601V2A
UC1846 - CURRENT-MODE PWM CONTROManufacturer: Texas Instruments
Categories: DC DC Switching Controllers
Quality Control: Learn More
Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 20-LCCC (8.89x8.89)
Additional Information
Series: UCx846RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-CLCC |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Up/Step-Down |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz |
| Topology | Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 750mV ~ 40V |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
| Synchronous Rectifier | No |
| Control Features | Current Limit, Dead Time Control, Frequency Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | Yes |
| Number of Outputs | 2 |
