TPSM82821SILR
5.5-V INPUT, 1-A STEP-DOWN MODULManufacturer: Texas Instruments
Categories: DC DC Converters
Quality Control: Learn More
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 4V 1A 2.4V - 5.5V Input
Additional Information
Series: MicroSip™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Output |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-LDFN Exposed Pad, Module |
| Size / Dimension | 0.10"" L x 0.08"" W x 0.04"" H (2.5mm x 2.0mm x 1.1mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Approval Agency | - |
| Efficiency | 95% |
| Current - Output (Max) | 1A |
| Supplier Device Package | 10-uSIP (3.8x3) |
| Voltage - Input (Min) | 2.4V |
| Voltage - Output 1 | 0.6 ~ 4V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | - |
| Number of Outputs | 1 |
Request a Quote
Clients Also Buy
TPSM82822SILR
5.5-V INPUT, 2-A STEP-DOWN MODUL

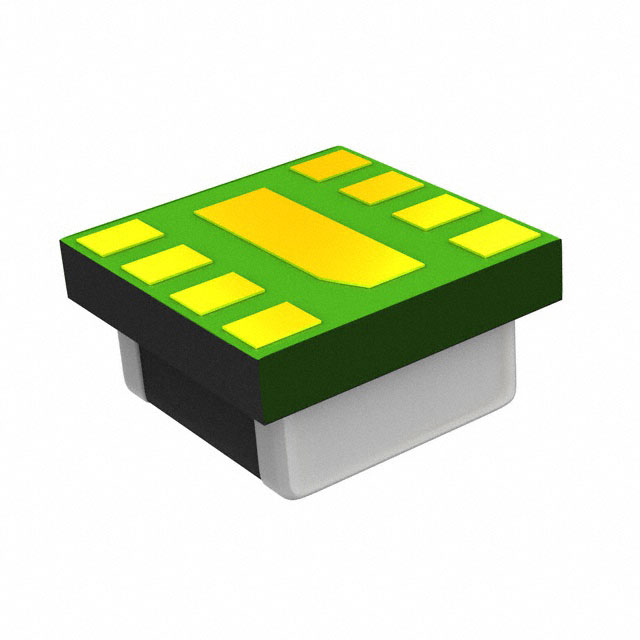

TPS82084SILT
DC DC CONVERTER 0.8-6V

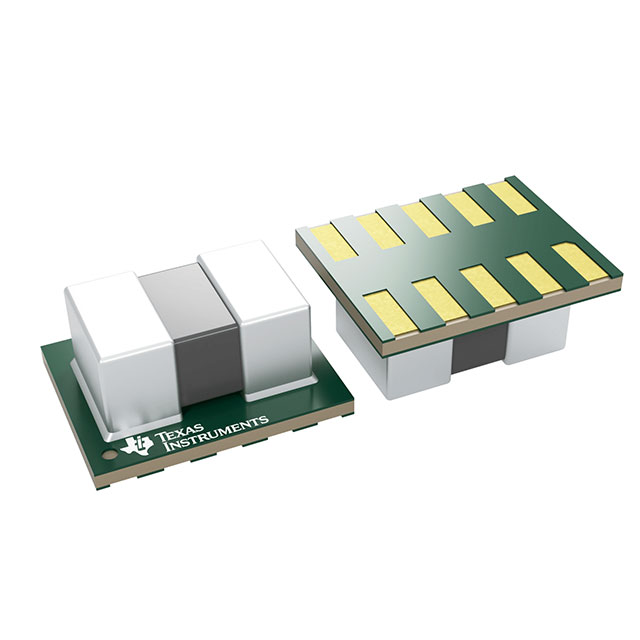

TPSM82823SILR
