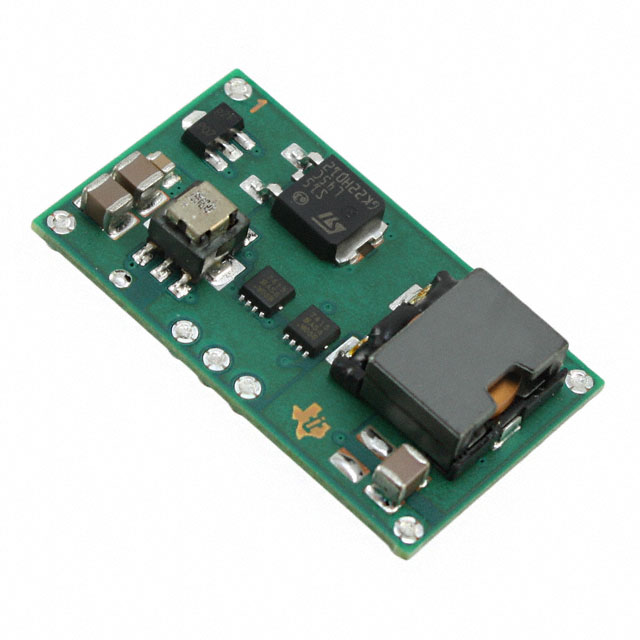

PTN78020WAZ
DC DC CONVERTER 2.5-12.6VManufacturer: Texas Instruments
Categories: DC DC Converters
Quality Control: Learn More
Non-Isolated PoL Module DC DC Converter 1 Output 2.5 ~ 12.6V 6A 7V - 36V Input
Additional Information
Series: PTN78020WRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Remote On/Off, OCP, OTP, UVLO |
| Packaging | Tray |
| Package / Case | 7-SMD Module |
| Size / Dimension | 1.50"" L x 0.87"" W x 0.38"" H (38.1mm x 22.1mm x 9.7mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Efficiency | 94% |
| Current - Output (Max) | 6A |
| Voltage - Input (Min) | 7V |
| Voltage - Output 1 | 2.5 ~ 12.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Number of Outputs | 1 |
