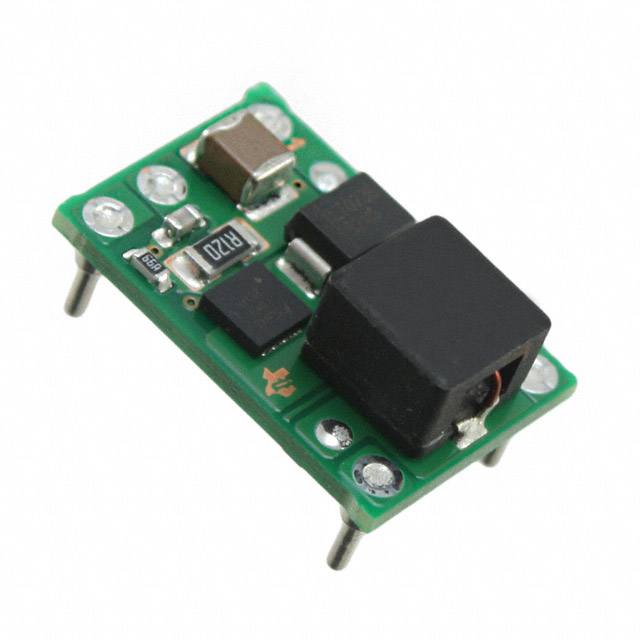

PTN78000WAH
DC DC CONVERTER 2.5-12.6VManufacturer: Texas Instruments
Categories: DC DC Converters
Quality Control: Learn More
Non-Isolated PoL Module DC DC Converter 1 Output 2.5 ~ 12.6V 1.5A 7V - 36V Input
Additional Information
Series: PTN78000WRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | UVLO |
| Packaging | Tray |
| Package / Case | 5-DIP Module |
| Size / Dimension | 0.75"" L x 0.50"" W x 0.34"" H (19.1mm x 12.7mm x 8.6mm) |
| Mounting Type | Through Hole |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Efficiency | 91% |
| Current - Output (Max) | 1.5A |
| Voltage - Input (Min) | 7V |
| Voltage - Output 1 | 2.5 ~ 12.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Number of Outputs | 1 |
Request a Quote
