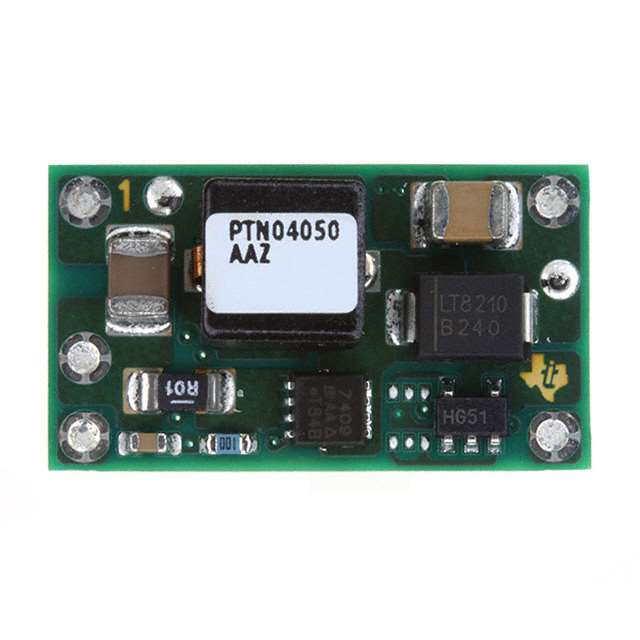

PTN04050AAZ
DC DC CONVERTER -15 TO -3.3VManufacturer: Texas Instruments
Categories: DC DC Converters
Quality Control: Learn More
Non-Isolated PoL Module DC DC Converter 1 Output -15 ~ -3.3V 1A 2.9V - 7V Input
Additional Information
Series: PTN04050A (6W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, UVLO |
| Packaging | Tray |
| Package / Case | 5-SMD Module |
| Size / Dimension | 0.87"" L x 0.50"" W x 0.36"" H (22.1mm x 12.7mm x 9.1mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 7V |
| Efficiency | 80% |
| Current - Output (Max) | 1A |
| Voltage - Input (Min) | 2.9V |
| Voltage - Output 1 | -15 ~ -3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Number of Outputs | 1 |
Request a Quote
